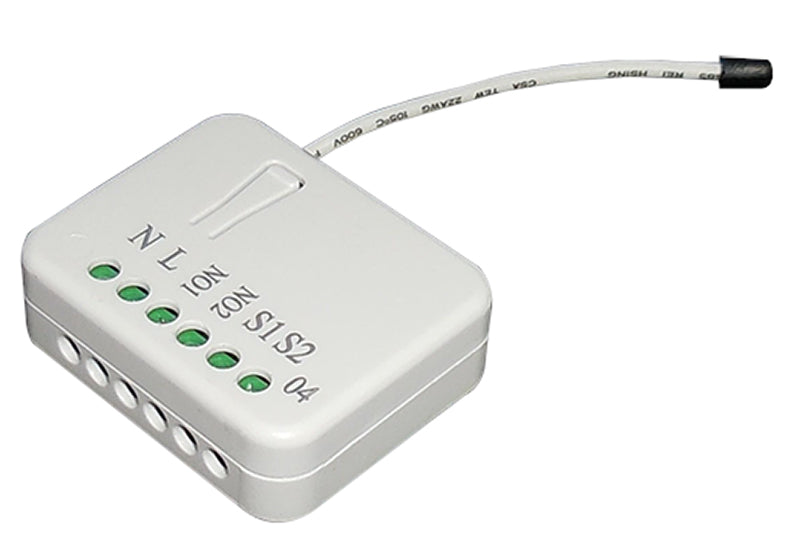

Z-Wave Philio 2 * 1.5 KW Power Meter Plus

by Philio
SKU PHIEPAN04-1B
Original price $50.05 - Original price $50.05
Original price
$50.05
$50.05 - $50.05
Current price $50.05

In stock iconIn Stock

Double Relay Inserts to control lighting and measure power consumption.

  • Enable Z-Wave control of lights and small appliances
  • Measure power consumption of appliances (PAN04-1B)
  • Control two independent loads
  • Small size enables inserts to fit into standard switch boxes
  • Require a 3-wire system (including neutral)
  • Z-Wave Plus Certified

The Philio Z-Wave Relay Inserts enable you to wirelessly control two independent loads. You can also control the loads manually with switches connected to the Philio Relay Insert.

The Inserts include 'Smart Calibration' technology that reduces in-rush currents when lamps are turned on, this makes them especially useful for controlling LEDs and fluorescent lamps. The PAN04 Relay module also includes measurement of the load's actual or accumulated power consumption.

Philio 2x1.5KW Relay with Power Measurement (PAN04-1B)

Double relay switch capable of operating two independent loads of up to 1.5KW each and measuring their power consumption.

  • Requires 3-wire (including neutral) installation
  • Power Measurement - Instant and Accumulated power consumption
  • Overload warning alert (configurable)
  • Various switch types - momentary (default), toggle, 1-way and 2-way
  • Works with AC or DC power supply (110-230V AC or 24-60V DC)

Note: These inserts require a 3-wire system (including neutral), please check your installation before purchasing. More information is available in Application Note 23 - Understanding 2-wire and 3-wire Lighting Systems.

Z-Wave Plus

The Philio 2 x 1.5 KW Power Meter Plus is Z-Wave Plus Certified. Z-Wave Plus (5th Generation Z-Wave) offers a lot of new features including increased range, extended battery life and Over The Air upgrading (OTA). Take a look at our "What is Z-Wave Plus" guide for more information

Technical Details

  • Dimensions 130x48x16 mm
  • Weight 40 gr
  • Hardware Platform SD3502
  • EAN 4713698571122
  • IP Class IP 20
  • Voltage 230 V
  • Load 6,5A
  • Device Type On/Off Power Switch
  • Network Operation Always On Slave
  • Firmware Version 01
  • Z-Wave Version 6.51.02
  • Certification ID ZC10-14110001
  • Z-Wave Product Id 0x013C.0x0001.0x0012
  • Frequency Europe - 868,4 Mhz
  • Maximum transmission power 5 mW
Included in this product:
  • Z-Wave Plus
