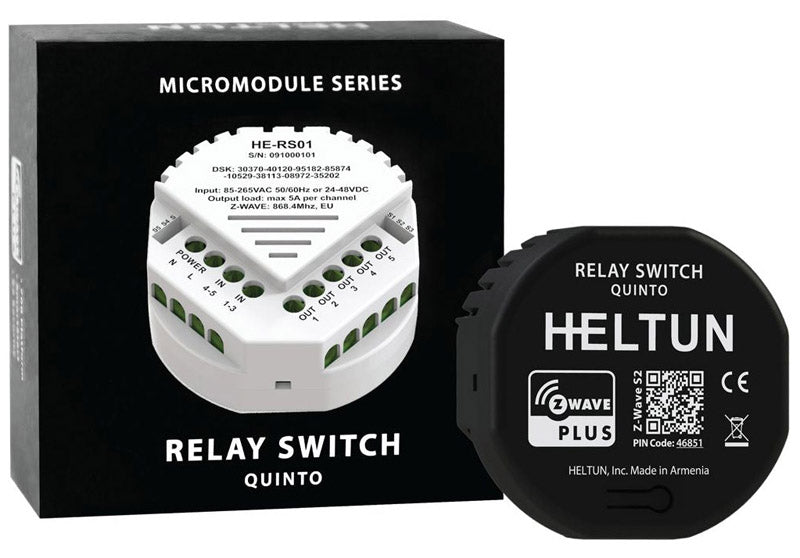

The HE-RS01 Relay Switch “Quinto” fits easily behind switches in standard electrical junction boxes or in a circuit breaker panel making connected devices ‘Impossibly Smart’. Thanks to Quinto’s five-channel relays it can manage either: 1) up to five On/Off devices, 2) three On/Off devices and one bidirectional motor, or 3) one On/Off device and two bidirectional motors. Two independent relay channel inputs allow control of systems with dierent power sources or use of relay outputs as dry contacts.
The Relay Switch quinto with roller shutter control, brings incredible capabilities to any connected device. It makes light switches ‘smart’ with full remote monitoring, control, and advanced programmability. This brings the convenience of smartphone app control and automation to ‘dumb’ devices such as multi-gang light switches, electronic door locks, motorized gates, blinds, windows, and valves. For example, you can control up to... Five ON/OFF devices, Three ON/OFF devices, and one, two-direction motor, One ON/OFF device, and two, two-direction motors At 26mm in depth, the Relay Switch quinto is also ‘impossibly small’, fitting into any rectangular, round or square electrical junction box, even behind attached devices.
Inputs, Outputs & Sensors
The main power input can be either 85-265VAC or 12-48VDC. There are five relay outputs each with a maximum 5 Amp load. There are also two independent inputs for relay channels which allow control of systems with different power sources, or to use outputs as dry contacts: e.g. to switch ON/OFF 220VAC lights and control motorized valves with 24VDC power. There are six pilot wire inputs: one common and five for each relay channel. This allows the Relay Switch quinto to be controlled by up to five different sources (e.g. five different light switches) and control all relay outputs separately. Each relay channel uses the HELTUN Advanced Zero-Cross Technology to deliver greatly increased longevity & reliability.
Know How Much Energy You Use
The HELTUN built-in Power Consumption System precisely monitors how much energy you used during any particular day, week, or month. Do your current light switches do that? Just specify the consumption of the load in watts for each relay channel and the Relay Switch quinto logic will calculate total consumption relative to the time since the output was in the ‘ON’ state. We have also designed the circuitry so it draws almost zero watts to power itself when in standby mode. This saves you energy and money especially if your home is equipped with many HELTUN products.
There are seven different modes that can be selected for the Relay Switch quinto with up to five pilot wires being used to control any relay output to devices like a wall switch, alarm panel, etc. The Relay Switch quinto output can also be controlled by an internal timer. For example, after the switch is turned ON, it can be configured to automatically switch OFF a specified time later (or vice-versa: turn ON after being turned OFF). This function can be used to open or close garage doors, gates, blinds, curtains, locks, etc., and then return them to their previous state with no additional input.
Motorized Device Controls
The HELTUN Relay Switch quinto does a lot more than just control house lights. You can use it to control motorized blinds, curtains, garage doors, driveway gates, and electric locks. You have full control over programming specific functions. The system also calculates the position of the blinds when fully opened or closed and automatically stops the motor when it reaches the UP or DOWN limit.
Make Circuit Breakers Smart
Since the HELTUN Relay Switch quinto has 5 channels which can each handle up to 5 Amp loads, it is a perfect addition to your circuit breaker panel for monitoring and controlling groups of devices from the Internet through a Z-Wave gateway, such as:, Entire groups of lights, Motorized valves, Door locks, Motorized blinds, doors, and gates.The Micromodule Mounting Adaptor is available from HELTUN as an accessory for the Relay Switch quinto to fit standard DIN rails (50mm width), or it can also be mounted directly on the wall using the supplied screws & anchors.
The HELTUN High Load Switch can be easily installed into any standard electrical junction box (rectangular, square, or round) in just minutes. Installation must only be performed by someone trained in handling high voltage electrical systems.
