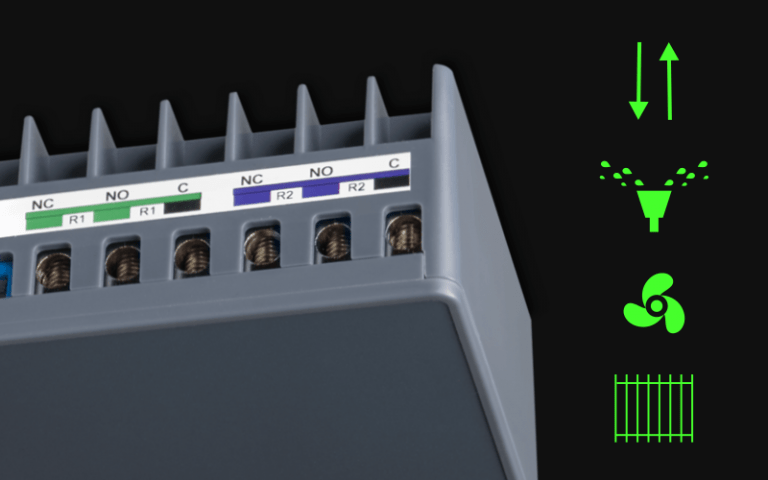

Dual Z-Wave Outputs

Convert almost any 0–240 V load into a Z-Wave device—ideal for garage doors, pumps, motors, and more. Each output supports NO or NC relay configurations. Handle up to 20 A (½ hp) on NO, and 10 A (¼ hp) on NC.

Dry contact relays let each load run independently. Power via 12–24 V or USB-C (adapter not included). Check the manual or contact us for custom wiring help.

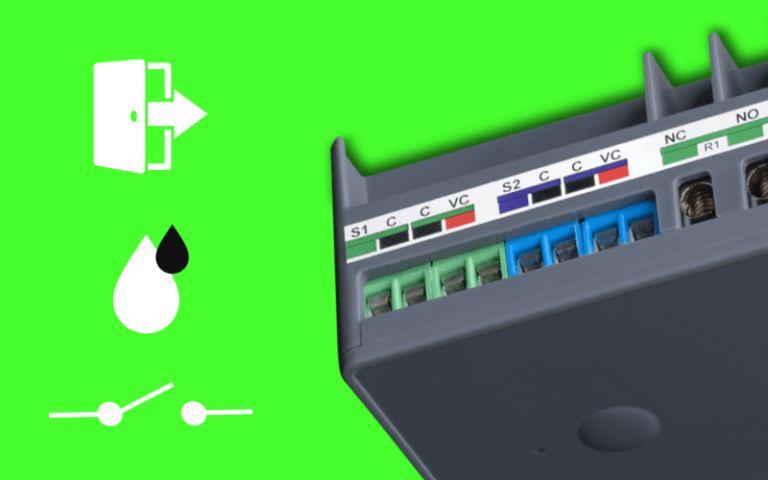

Smart Monitoring Inputs

Use the Universal Relay inputs to monitor analog sensors, dry contacts, or low-voltage devices.

Trigger outputs via wall switches, buttons, or signals from HVAC and alarm systems. Note: each output accepts only one input type at a time (12–24 V or dry contact).

Inputs can also operate independently for monitoring purposes. Customize how each input reports in your Z-Wave controller—motion, open/close, water, or on/off—turning your relay into a smart monitoring device with two independently controlled outputs.

Automate Two Garage Doors with One Universal Relay

Add Z-Wave control and monitoring to your garage doors with the Universal Relay—perfect for full garage automation.

Connect a wired door sensor to monitor open/close status through your Z-Wave controller, and wire the relay to your opener for remote control. You can also use a Z-Wave tilt or contact sensor for position updates if preferred.

Note: Use only with Z-Wave controllers that support the advanced features of the Universal Relay. Hub not included.

\

Ways to Use the Universal Relay

Commonly used to automate up to two garage doors—connect a wired sensor for status monitoring and wire the relay to trigger the opener remotely. Inputs and outputs operate independently for flexible control.

Also ideal for controlling reverse polarity motors (such as shades, screens, or awnings) and optimizing HVAC systems through automated dampers or whole-house fans.

ETL Certified with Advanced Z-Wave Features

This ETL-certified plug meets North American safety standards. It supports over-the-air firmware updates for future-proofing and comes with a 5-year warranty plus lifetime tech support. Featuring Z-Wave Long Range with S2 security and SmartStart for reliable, secure connectivity.
