Rising energy costs have made one thing clear: guessing how much electricity your home uses is no longer good enough. UK homeowners are under real pressure to understand where their power goes — from overnight standby drain to heavy appliances running during peak hours. Smart energy monitors have emerged as a practical answer, giving households real-time visibility into consumption patterns without the need for an electrician or a utility company upgrade. The challenge, however, is choosing the right device. A monitor suited to a compact flat will fall short in a larger property with solar panels, and an over-engineered system is wasted on a household that simply wants to read the meter more intelligently.
This blog sets out to answer one specific question: which Aeotec Z-Wave energy monitor is right for your home? The two products under comparison are the Aeotec Clamp Power Meter (One Clamp 100A) — a weatherised, single-clamp solution for straightforward consumption tracking — and the Aeotec Home Energy Meter (Three Clamp 200A), a high-capacity Z-Wave home energy monitor built for three-phase properties and renewable energy setups. By the end of this guide, you will have a clear, confident answer based on your actual home, not marketing language.
Vesternet has been helping UK homeowners build smarter, more efficient homes for years, with particular expertise in Z-Wave technology and the broader smart home ecosystem. Our approach is always product-neutral: we are here to help you find the right fit, not push a sale. The comparisons and recommendations in this guide are grounded in verified product specifications and real-world use cases, so you can trust that what follows is practical, accurate, and genuinely useful.
Meet the Aeotec Three-Clamp 200A Energy Meter: Whole-Home Monitoring with Three-Phase Support
The Aeotec Home Energy Meter (Three Clamp 200A) is a Z-Wave energy monitor built for homes that demand more than basic consumption tracking. It uses three CT clamps, each rated up to 200A, to monitor energy across a 3 Phase / 4 Wire (3 Line + Neutral) wiring configuration — the kind of setup found in larger UK properties, properties with high-draw appliances, or homes generating their own electricity through solar panels or wind turbines. All three output channels report data in real time, giving you a live, multi-circuit view of your home's energy activity directly through your Z-Wave gateway.
Beyond consumption, the Three-Clamp meter also tracks energy production, detecting excess power on multi-phase systems and enabling automation — for example, triggering a washing machine or heater to run when renewable energy is available. It operates on Z-Wave Plus with S0 security and AES-128 encryption, and is rated to a wireless range of 150 metres. It is compatible with SmartThings and Home Assistant, integrates into Aeotec's wider smart home ecosystem, and is powered via AC mains.
Key specifications at a glance
- Three CT clamps rated up to 200A each
- Supports 3 Phase / 4 Wire wiring configurations
- 99% measurement accuracy with real-time reporting
- 150-metre wireless range with AES-128 S0 encryption
Meet the Aeotec One-Clamp 100A Power Meter: Straightforward Energy Tracking for Everyday Homes
The Aeotec Clamp Power Meter (One Clamp 100A) takes a refreshingly simple approach to Z-Wave power metering. A single CT clamp, rated up to 100A, clips around the incoming power cable inside your main electricity box — no rewiring, no electrician, no disruption. Once clipped into place, the device connects to your Z-Wave network and begins reporting both real-time power consumption in Watts and accumulated usage in kilowatt-hours. It is an accessible, low-barrier entry point for anyone new to smart energy monitoring who wants to understand their electricity bill without taking on a complex installation project.
The device carries an IP43 weatherised rating, making it suitable for outdoor meter boxes or exposed utility areas where moisture and dust are a consideration. Its white finish and back-mount anchoring design keep things tidy once installed. Powered by a standard AC mains supply and finished in white, the One-Clamp meter focuses on doing one thing well: giving you a clear, reliable picture of your overall household electricity use. No defined Z-Wave security class is listed in its specifications, which is worth noting for security-conscious users.
What it monitors and reports
- Real-time power consumption in Watts
- Accumulated energy usage in kWh
- Single incoming power cable up to 100A
- IP43-rated enclosure for outdoor installations

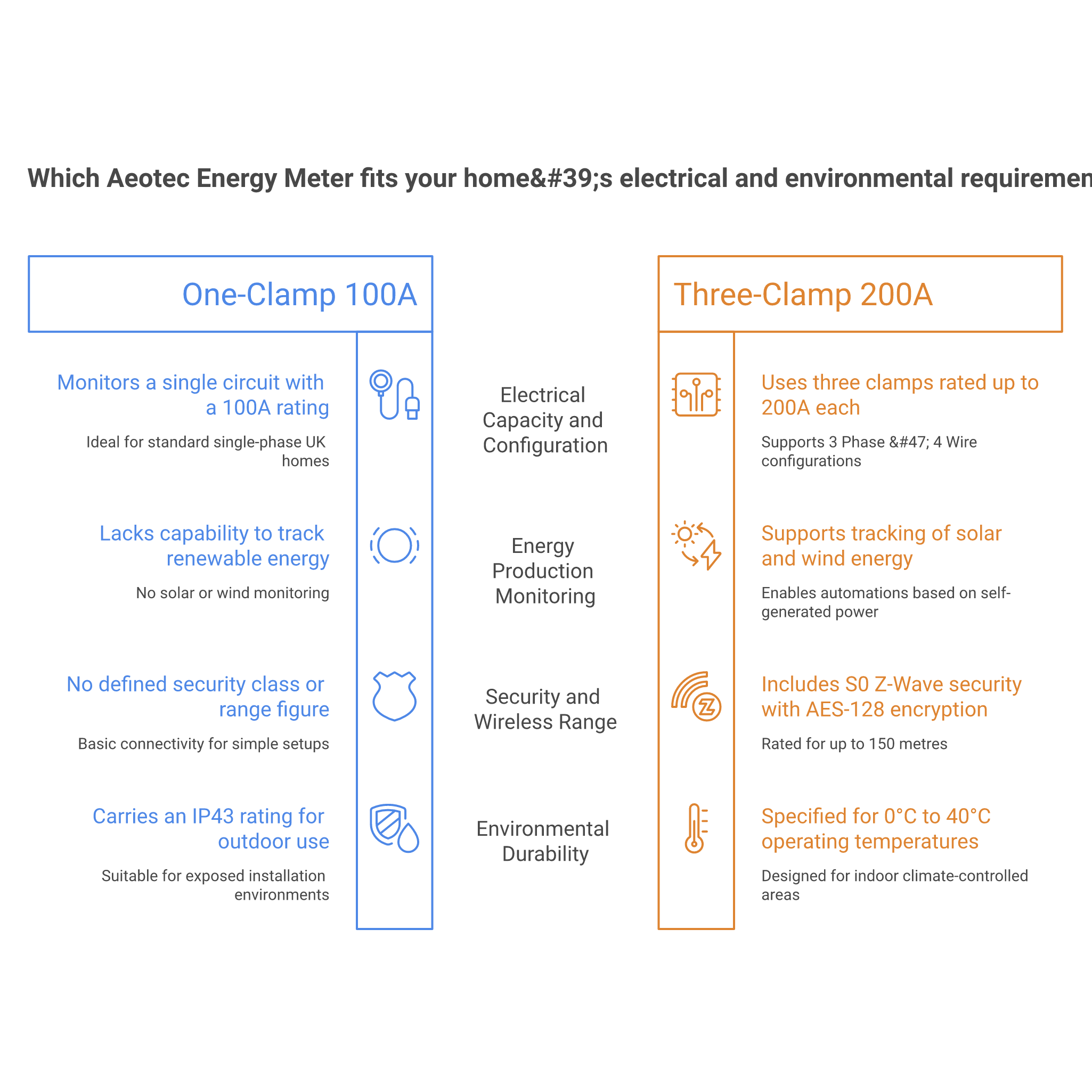

Clamps, Capacity, and Compatibility: How These Two Aeotec Energy Meters Differ Where It Counts
The most immediate difference between the two devices is physical: one clamp versus three. The One-Clamp 100A model monitors a single circuit with a clamp rated up to 100A, while the Three-Clamp 200A model uses three clamps — each rated up to 200A — across three separate phases. For the vast majority of standard UK homes wired on a single-phase supply, one clamp is sufficient. But for larger properties, those with high-capacity electrical systems, or anyone managing energy from renewable sources, three clamps across a 3 Phase / 4 Wire (3 Line + Neutral) configuration is not just preferable — it is necessary to capture an accurate picture of whole-home energy flow.
Wiring configuration and output channels
The Three-Clamp model is explicitly designed for 3 Phase / 4 Wire wiring and provides three output channels, meaning it can report independently on each phase simultaneously. The One-Clamp model, by contrast, offers a single output channel suited to a single-circuit supply. This distinction has a direct impact on the depth of data you receive and the kind of automation you can build around it.
Energy production monitoring
Only the Three-Clamp 200A meter supports tracking of energy produced by solar panels, wind turbines, or other renewable sources. It can detect excess power generation across multi-phase systems and feed that data into Z-Wave automations — for instance, running appliances only when self-generated power is available. The One-Clamp model has no energy production monitoring capability.
Security, range, and installation environment
- Security: Three-Clamp includes S0 Z-Wave security with AES-128 encryption; One-Clamp lists no defined security class
- Wireless range: Three-Clamp is rated to 150 metres; no specific range figure is provided for the One-Clamp model
- Weather rating: One-Clamp carries an IP43 rating for outdoor use; no weatherisation rating is noted for the Three-Clamp model
- Operating temperature: Three-Clamp is specified at 0°C to 40°C; no temperature range is listed for the One-Clamp model
These differences are not about one product being better than the other in absolute terms — they reflect genuinely different design priorities. The Three-Clamp meter is built for range, security, and multi-phase precision. The One-Clamp meter is built for accessibility and outdoor durability in a single-phase context. Understanding which set of priorities matches your home is the key to making the right choice.
Accuracy, Range, and Real-World Reliability: How These Two Aeotec Meters Perform in Practice
The Three-Clamp 200A model carries a stated measurement accuracy of 99%, which is significant in practice. At that level of precision, the device can reliably detect subtle energy draws — standby consumption from televisions or phone chargers, for example — as well as sharp spikes from high-draw appliances like electric ovens or EV chargers. For users who want to act on their data rather than just read it, that accuracy is what makes automation meaningful. A Z-Wave gateway receiving near-perfect data can trigger responses that genuinely reduce waste rather than reacting to imprecise readings.
Wireless range in real installations
Electricity meters are frequently located in garages, outdoor boxes, or utility cupboards — often far from the central Z-Wave hub. The Three-Clamp model's 150-metre wireless range addresses this directly, making it a reliable choice even in properties where the meter is at the furthest point from the router. Both devices operate on Z-Wave Plus, which means they participate in the Z-Wave mesh network, benefit from improved protocol efficiency, and maintain backward compatibility with existing Z-Wave controllers.
Practical reliability for everyday use
- Three-Clamp: 99% accuracy, three simultaneous reporting channels, 150-metre range
- One-Clamp: IP43-rated body for outdoor or exposed locations, simple CT clamp clip-on installation
- Both: Z-Wave Plus protocol with mesh networking support
The One-Clamp model's IP43 rating is a practical advantage in outdoor meter box installations where dust and light moisture are present. Its clip-on CT clamp sensor requires no electrical work, which lowers the barrier to entry considerably. While no accuracy figure or wireless range specification is provided for the One-Clamp model, its single-channel simplicity suits homes where the total incoming supply gives a sufficient overview of household energy use.
Strengths and Trade-Offs of the Three-Clamp 200A Energy Meter: Power and Precision at a Cost of Complexity
The Aeotec Home Energy Meter (Three Clamp 200A) is a capable, future-ready Z-wave power meter that genuinely earns its place in more ambitious smart home setups. Its three 200A-rated clamps, three output channels, and support for 3 Phase / 4 Wire systems make it one of the most comprehensive Z-Wave home energy monitors available for residential use. Add in 99% measurement accuracy, a 150-metre wireless range, and the ability to track and automate around solar or wind energy production, and it is easy to see why this device suits homeowners who want serious insight into their energy picture.
Pros
- Three-phase support with three independent CT clamps up to 200A each
- 99% measurement accuracy for precise, actionable energy data
- 150-metre wireless range for hard-to-reach meter locations
- S0 Z-Wave security with AES-128 encryption for private local monitoring
- Tracks energy production from solar panels and wind turbines with automation support
Cons
- Greater installation complexity compared to a single-clamp device
- Likely over-specified for standard single-phase homes with simple monitoring needs
- No IP weatherisation rating noted in specifications, which may be a consideration for certain outdoor installs
Strengths and Trade-Offs of the One-Clamp 100A Power Meter: Simplicity and Accessibility With Some Limitations
The Aeotec Clamp Power Meter (One Clamp 100A) does what a good entry-level Z-Wave energy monitor should: it removes every unnecessary barrier between you and your energy data. The CT clamp clips onto the incoming supply cable without any wiring changes, the IP43-rated enclosure handles outdoor conditions, and the device begins reporting consumption in Watts and kWh as soon as it joins your Z-Wave network. For first-time smart home adopters or anyone in a standard single-phase UK property, this straightforwardness is genuinely valuable.
Pros
- Tool-free CT clamp installation with no electrical rewiring required
- IP43 weatherised rating suitable for outdoor meter boxes
- Reports both real-time Watts and cumulative kWh usage
- Clean white finish with back-mount anchoring for tidy installation
Cons
- Limited to a single clamp — not suitable for three-phase properties or multi-circuit tracking
- 100A maximum clamp rating is lower than the Three-Clamp model's 200A per clamp
- No defined Z-Wave security class listed in available specifications
- No energy production monitoring capability
- No stated accuracy rating or wireless range figure in the available specifications

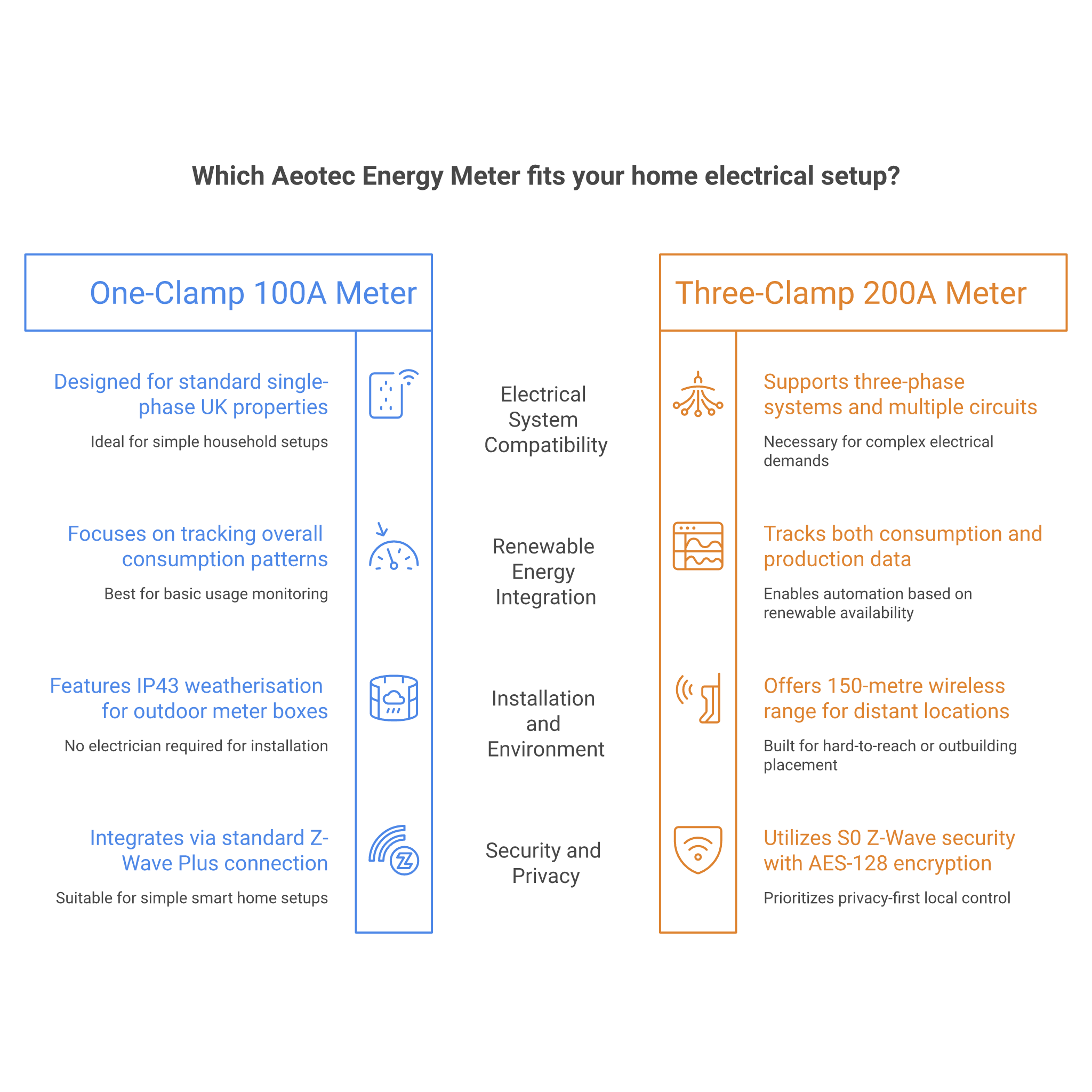

Who Should Choose Which Aeotec Energy Meter? Matching the Right Device to Your Home and Lifestyle
Technical specifications only tell part of the story. What matters most is whether a device fits the reality of your home, your electrical setup, and the goals you have for your energy monitoring. The good news is that these two products serve genuinely different user profiles — so with a little reflection, the right choice usually becomes clear.
Choose the One-Clamp 100A Power Meter if you:
- Are new to smart home technology and want a simple, low-fuss entry into Z-Wave energy monitoring
- Live in a standard single-phase UK property and primarily want to track overall consumption
- Need to install in an outdoor meter box where IP43 weatherisation is a practical requirement
- Want to understand your electricity bill and spot broad usage patterns without complex setup
This device is also well suited to renters or those in smaller properties where a single incoming supply cable covers the full picture of household electricity use. The clip-on CT clamp design means no electrician is needed, and the Z-Wave Plus connection ensures it slots neatly into an existing smart home controller setup without friction.
Choose the Three-Clamp 200A Home Energy Meter if you:
- Have a three-phase electrical system or a larger property with multiple circuits to monitor
- Have installed solar panels, wind turbines, or another renewable energy source and want to track both consumption and production
- Want to automate appliances — such as washing machines or EV chargers — based on live renewable energy availability
- Require the highest possible measurement accuracy and a long wireless range for a meter in a distant or hard-to-reach location
Tech-savvy users who want to build automations around energy production data, or landlords managing larger properties with complex electrical demands, will find the Three-Clamp model far better aligned with those ambitions. Its S0 Z-Wave security with AES-128 encryption also makes it the stronger option for anyone prioritising a privacy-first, locally controlled smart home with no third-party data exposure. The 150-metre wireless range means even a garage or outbuilding meter location is well within reach of a centrally placed Z-Wave gateway.
The Right Energy Meter for Your Smart Home: Making a Decision That Works for You
Both of these Aeotec devices are solid, well-considered Z-Wave energy monitors — but they are built for different homes and different ambitions. The One-Clamp 100A Power Meter is the weatherised, hassle-free option for anyone in a standard single-phase UK property who wants practical, everyday energy awareness without a complicated installation. The Three-Clamp 200A Home Energy Meter is the more powerful, future-ready choice for three-phase properties, renewable energy setups, and users who want deep, accurate, automatable insight across multiple circuits.
Neither product is universally superior. The better choice depends entirely on your home's wiring configuration, whether you generate any of your own electricity, how technically confident you feel during setup, and how much detail you actually want from your monitoring. A single clamp reporting your total household draw is genuinely useful for most people. Three clamps tracking phase-by-phase consumption and live solar production is transformative — but only if your home and goals call for it.
Before you decide, ask yourself:
- Is my property wired on a single-phase or three-phase supply?
- Do I have solar panels, a wind turbine, or plans to install renewable energy generation?
- Is my meter box outdoors or in an exposed location?
- Do I want to automate appliances based on live energy data?
Once you have a clear answer to those questions, the right device tends to select itself. We would encourage you to explore both the Aeotec Clamp Power Meter (One Clamp 100A) and the Aeotec Home Energy Meter (Three Clamp 200A) on Vesternet, where you can also browse the wider Aeotec Z-Wave ecosystem and find compatible gateways and accessories. If you are still unsure which direction suits your home, our team is always happy to help you work through the details and find the right fit.
Which Aeotec Energy Meter Should You Choose?
If you live in a standard single-phase UK home, want a fuss-free installation, and simply need to understand your overall electricity consumption, the One-Clamp 100A Power Meter is the more practical starting point. Its IP43 rating, clip-on CT clamp design, and Z-Wave Plus connectivity make it an accessible and reliable choice for everyday energy awareness.
If you have a three-phase property, generate renewable energy from solar panels or wind turbines, or want to automate appliances based on live energy production data, the Three-Clamp 200A Home Energy Meter is the clear step up. Its three output channels, 200A per clamp capacity, 99% accuracy, 150-metre wireless range, and S0 security make it a future-proof investment for serious smart home energy management.
Ultimately, the decision comes down to the complexity of your electrical setup and the depth of insight you want from your smart home system. Both products are available to explore at Vesternet, where you can also browse the full Aeotec Z-Wave ecosystem and find the right gateway and accessories to complete your setup.
