Smart home automation is driving demand for retrofit solutions that can transform existing switches without rewiring, but choosing between single and dual channel options can be confusing for homeowners looking to optimise their wireless lighting control system setup. Whether you're building an intelligent lighting system from scratch or upgrading your current automatic lighting system, understanding the differences between channel configurations is crucial for making the right investment.
This comparison will help you decide between Shelly's Wave 1 and Wave 2PM based on your specific control needs, energy monitoring requirements, and installation preferences to maximise your smart home investment. Both devices represent some of the best home lighting control systems available, offering robust Z-Wave connectivity and advanced automation features.
Vesternet's expertise in Z-Wave technology and extensive experience with Shelly Qubino products ensures you get accurate, practical advice for making the right choice for your home automation project.
Understanding Single Channel Smart Switching with Wave 1
The Shelly Wave 1 is a single-channel Z-Wave relay designed to retrofit behind any existing switch or socket, instantly transforming it into a smart control point. This compact device operates on the latest Z-Wave S800 chip generation, ensuring reliable communication within your wireless lighting control system whilst maintaining compatibility with over 4000 Z-Wave certified devices and gateways.
What sets the Wave 1 apart in intelligent lighting system applications is its versatility across different load types and voltage configurations. With a robust 16A AC load rating, it handles everything from LED and halogen lighting to high-power appliances with ease.
Key Applications for Single Channel Control
- Garage door automation with 12V or 24-48V DC operation
- Irrigation system control for automated gardening
- Single high-power appliance management
- Porch and security lighting automation
The device supports both momentary and toggle switch inputs, making it compatible with virtually any existing switch configuration in your home.
Exploring Dual Channel Control with Wave 2PM
The Shelly Wave 2PM takes automation a step further with its dual-channel architecture, allowing independent control of two separate electrical appliances whilst providing comprehensive power monitoring for each channel. This advanced automatic lighting system component delivers 10A per channel with a combined total of 16A, making it ideal for managing multiple moderate-load devices simultaneously.
The 2PM's standout feature lies in its sophisticated energy monitoring capabilities, precisely measuring power consumption for each channel separately in watts, plus combined consumption in both watts and kilowatt-hours. This granular monitoring transforms your intelligent lighting system into a powerful energy management tool.
Dual Channel Advantages
- Independent control of two separate devices
- Real-time energy monitoring per channel
- Enhanced protection with overcurrent and overvoltage safeguards
- Maximised control density in limited installation space
Both channels support the same load types as the Wave 1, including LED, halogen, incandescent, and various motor loads, ensuring compatibility across diverse applications.

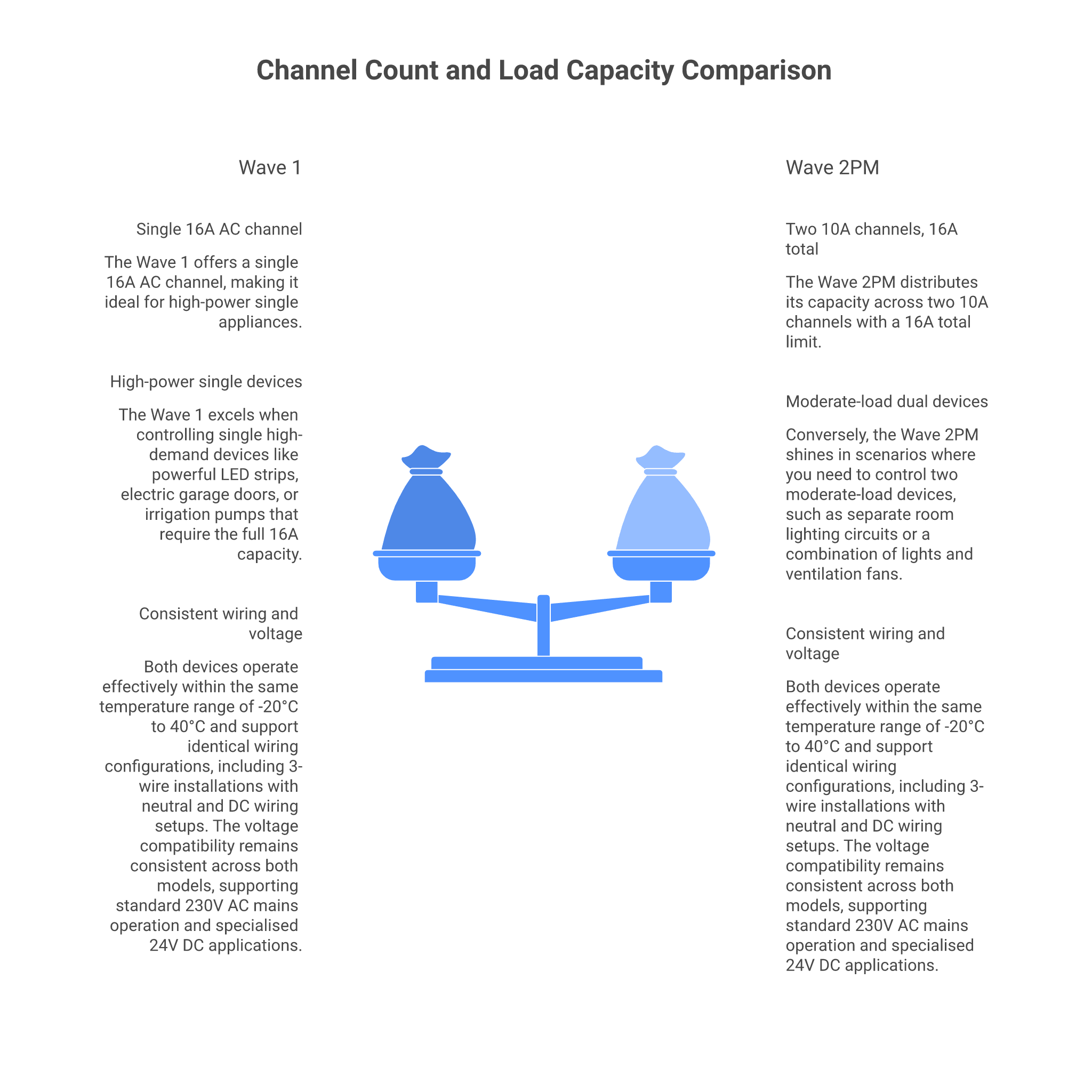

Channel Count and Load Capacity: How They Stack Up
The fundamental difference between these devices centres on their output architecture and load distribution capabilities. The Wave 1 offers a single 16A AC channel, making it ideal for high-power single appliances, whilst the Wave 2PM distributes its capacity across two 10A channels with a 16A total limit.
Load Capacity Comparison
- Wave 1: Single channel at 16A AC, 10A DC
- Wave 2PM: Two channels at 10A each, 16A total AC, 10A DC
- Both: Support 230V AC mains and 24V DC operation
- Compatible load types: LED, halogen, incandescent, resistive, capacitive, inductive
This capacity distribution significantly impacts your wireless lighting control system design. The Wave 1 excels when controlling single high-demand devices like powerful LED strips, electric garage doors, or irrigation pumps that require the full 16A capacity. Conversely, the Wave 2PM shines in scenarios where you need to control two moderate-load devices, such as separate room lighting circuits or a combination of lights and ventilation fans.
Both devices operate effectively within the same temperature range of -20°C to 40°C and support identical wiring configurations, including 3-wire installations with neutral and DC wiring setups. The voltage compatibility remains consistent across both models, supporting standard 230V AC mains operation and specialised 24V DC applications.
Installation Flexibility Factors
- Retrofit design fits behind standard switches and sockets
- 3-wire neutral wiring support for stable operation
- DC voltage compatibility for garage doors and irrigation systems
- Configurable power failure states for predictable behaviour
The choice between single and dual channel configurations ultimately depends on whether your intelligent lighting system benefits more from maximum individual load capacity or flexible multi-device control within the same installation point.
Real-World Performance: Speed, Monitoring, and Reliability
Both devices leverage the latest Z-Wave Plus V2 technology with S800 chip architecture, ensuring optimal communication speed and network reliability within your automatic lighting system. The Z-Wave S800 generation delivers significant improvements in range, battery life for battery-powered devices in the network, and overall mesh network stability compared to earlier generations.
Performance Characteristics
- Z-Wave Plus V2 certification for enhanced compatibility
- S800 chip technology for improved range and reliability
- Sub-second response times for lighting control
- Robust mesh networking for extended coverage
Energy monitoring accuracy varies between the models, with the Wave 2PM offering more sophisticated metering capabilities. The 2PM provides precise power measurement for each channel independently, enabling detailed analysis of individual device consumption patterns. This granular monitoring proves invaluable for optimising energy usage across different circuits in your best home lighting control systems setup.
Protection features differ slightly between models, with both offering overheating protection and configurable power failure states. The Wave 2PM includes additional overcurrent and overvoltage protection, providing enhanced safety for sensitive connected devices. Both models support automatic timers and configurable normally open or normally closed output states.
Reliability Features
- Overheating protection on both models
- Enhanced protection suite on Wave 2PM (overcurrent, overvoltage)
- Configurable power failure behaviour
- Association support for direct device communication
Response times remain consistently fast across both models, with typical switching delays under one second for local Z-Wave commands and slightly longer for remote app-based control depending on internet connectivity and hub processing speed.
Wave 1 Advantages and Limitations
The Wave 1's greatest strength lies in its simplicity and maximum individual load capacity, making it the ideal choice for demanding single-device applications within your wireless lighting control system. Its 16A rating handles high-power LED installations, electric garage doors, and irrigation pumps that would exceed the per-channel capacity of dual-channel alternatives.
Key Wave 1 Benefits
- Maximum 16A load capacity for high-power devices
- Simplified single-channel configuration
- DC voltage support for garage doors and irrigation
- Cost-effective solution for single-device control
The device's DC voltage compatibility (12V, 24-48V) proves particularly valuable for garage door automation and irrigation systems, where these voltage levels are common. This versatility extends your intelligent lighting system beyond traditional AC applications into specialised automation scenarios.
However, the single-channel design inherently limits simultaneous device control from one installation point. If your automatic lighting system requires controlling multiple circuits or devices from a single switch location, the Wave 1 necessitates multiple device installations, potentially increasing complexity and cost. Additionally, the Wave 1 lacks the advanced energy monitoring granularity that the Wave 2PM provides, offering basic power monitoring without per-device breakdown capabilities.
Potential Limitations
- Single device control per installation
- Basic energy monitoring without detailed breakdowns
- Multiple devices needed for multi-circuit control
Wave 2PM Strengths and Weaknesses
The Wave 2PM excels in scenarios requiring flexible multi-device control with sophisticated energy monitoring, making it an excellent foundation for comprehensive best home lighting control systems. Its dual-channel architecture maximises control density, allowing management of two separate devices from a single installation point whilst providing detailed consumption analytics for each channel.
Wave 2PM Advantages
- Independent dual-channel control for maximum flexibility
- Advanced per-channel energy monitoring (W, kWh)
- Enhanced protection suite including overcurrent and overvoltage
- Higher control density per installation point
The device's sophisticated energy monitoring capabilities transform it into a powerful tool for optimising your intelligent lighting system's efficiency. By tracking consumption patterns for each connected device separately, you can identify energy-hungry appliances and adjust usage patterns accordingly, potentially reducing utility costs significantly.
The Wave 2PM's main limitation stems from its distributed load capacity, with each channel capped at 10A compared to the Wave 1's full 16A single-channel rating. This restriction prevents connecting high-power devices that require the complete 16A capacity, potentially necessitating alternative solutions for demanding applications. Additionally, the dual-channel configuration introduces complexity that may overwhelm users seeking simple single-device automation in their wireless lighting control system.
Potential Drawbacks
- Reduced per-channel capacity (10A vs 16A)
- Increased configuration complexity
- Unsuitable for single high-power device applications

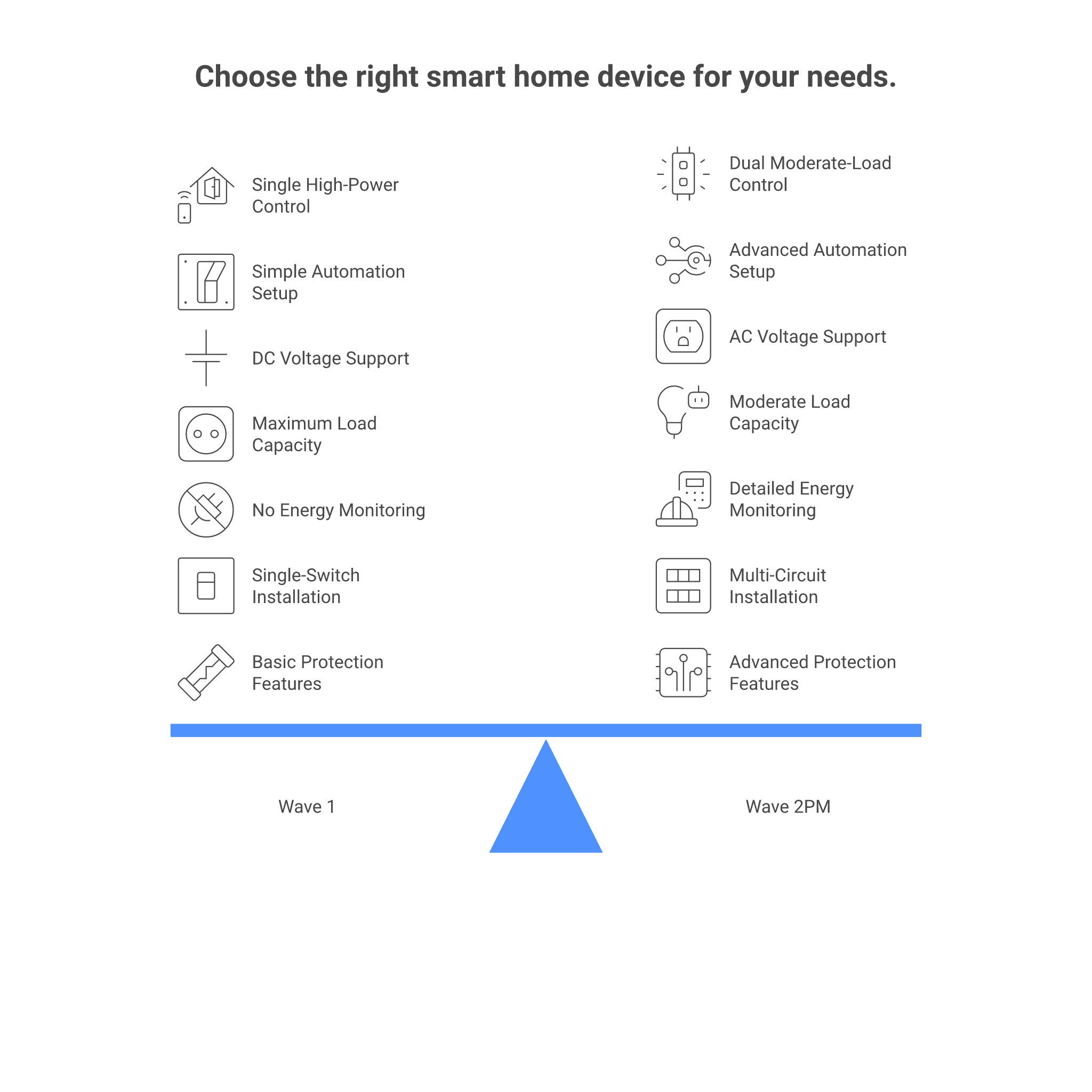

Matching Your Smart Home Needs: Which Device Suits You
Selecting between the Wave 1 and Wave 2PM depends largely on your specific automation requirements and installation scenarios. Understanding your current and planned intelligent lighting system needs helps determine which device architecture aligns with your goals.
Choose Wave 1 If You Need
- Single high-power device control (garage doors, irrigation pumps)
- Simple, straightforward automation setup
- DC voltage applications (12V, 24-48V)
- Maximum load capacity for demanding appliances
Single-device, high-power applications represent the Wave 1's sweet spot. Homeowners automating garage doors, irrigation systems, or powerful LED installations benefit from the full 16A capacity and simplified configuration. The device's DC voltage support makes it particularly suitable for outdoor and automotive applications where these voltage levels are standard.
Multi-room lighting enthusiasts and energy-conscious users find the Wave 2PM more aligned with their automatic lighting system objectives. The dual-channel architecture enables sophisticated control schemes, such as managing both ambient and task lighting independently while monitoring their individual consumption patterns.
Choose Wave 2PM If You Want
- Independent control of two moderate-load devices
- Detailed energy monitoring and consumption analytics
- Maximum control density in limited installation space
- Advanced protection features for sensitive equipment
DIY beginners often prefer the Wave 1's straightforward approach, whilst advanced automation specialists appreciate the Wave 2PM's flexibility for complex scenarios. Consider your technical comfort level and long-term automation plans when making your decision. Both devices integrate seamlessly with existing wireless lighting control system infrastructure and support the same advanced Z-Wave features like associations and automated scheduling.
Landlords and property managers frequently opt for the Wave 2PM in rental properties, as its dual-channel capability provides tenants with enhanced control options whilst enabling energy monitoring for cost allocation. The enhanced protection features also reduce maintenance concerns with varied tenant usage patterns.
Professional Installation Considerations
- Both devices require 3-wire neutral connections
- Wave 1 better for single-switch, high-load scenarios
- Wave 2PM optimal for dual-switch or multi-circuit applications
- Both support association features for direct device communication
Making Your Choice: Single vs Dual Channel Decision
Both the Shelly Wave 1 and Wave 2PM excel in their respective domains, offering robust Z-Wave automation capabilities with the latest S800 chip technology. The Wave 1 shines when you need maximum load capacity for a single high-power device, while the Wave 2PM excels at managing two separate devices with detailed energy insights for optimising your best home lighting control systems.
The 'better' choice ultimately depends on your specific automation goals and installation requirements. Consider the Wave 1 if you're controlling garage doors, irrigation systems, or single high-load appliances. Opt for the Wave 2PM when managing multiple lights, monitoring energy usage separately, or maximising control density in your intelligent lighting system setup.
Decision Framework
- Single high-power device: Wave 1
- Two moderate-power devices: Wave 2PM
- Energy monitoring priority: Wave 2PM
- Simplicity preference: Wave 1
Both devices integrate seamlessly with over 4000 Z-Wave certified products and support advanced features like associations and automated scheduling. Take time to evaluate your current and future control needs, then explore both Wave 1 and Wave 2PM products to find the perfect fit for your wireless lighting control system journey.
